01 / Slim footprint
Think vertically

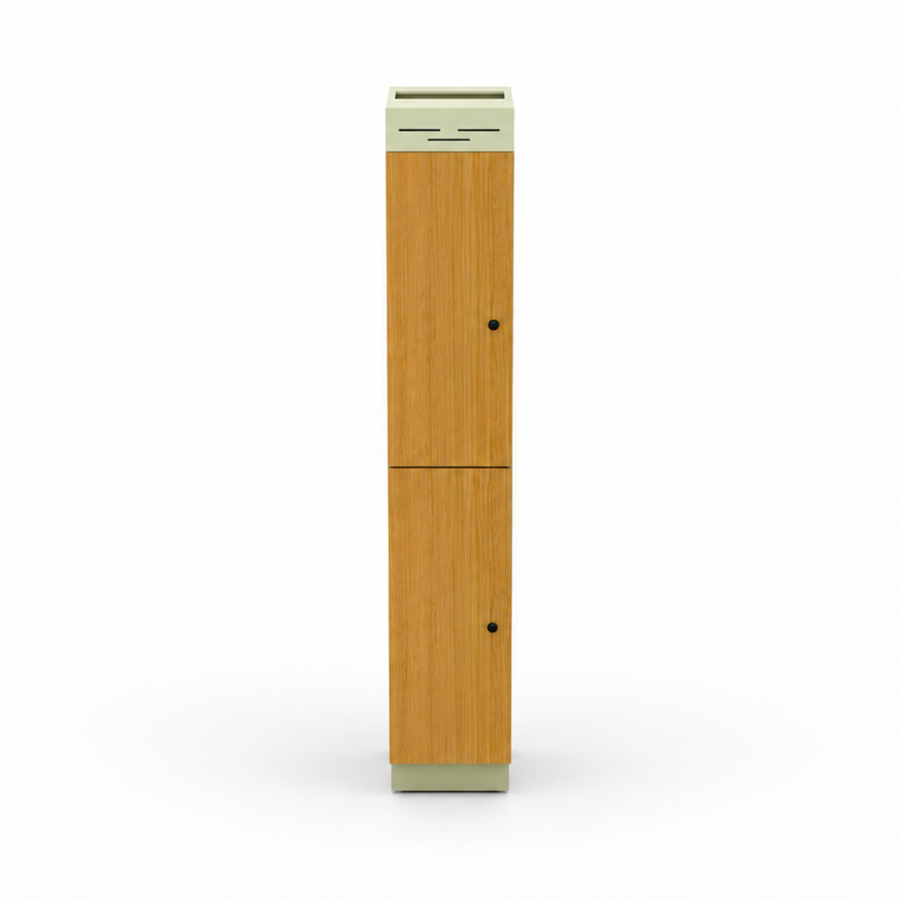

An 11.5-inch front width and 75-inch height make use of a dedicated narrow storage position.
Product detailsSmart Space-Saving Cabinet, Built to Fit Your Campervan Perfectly

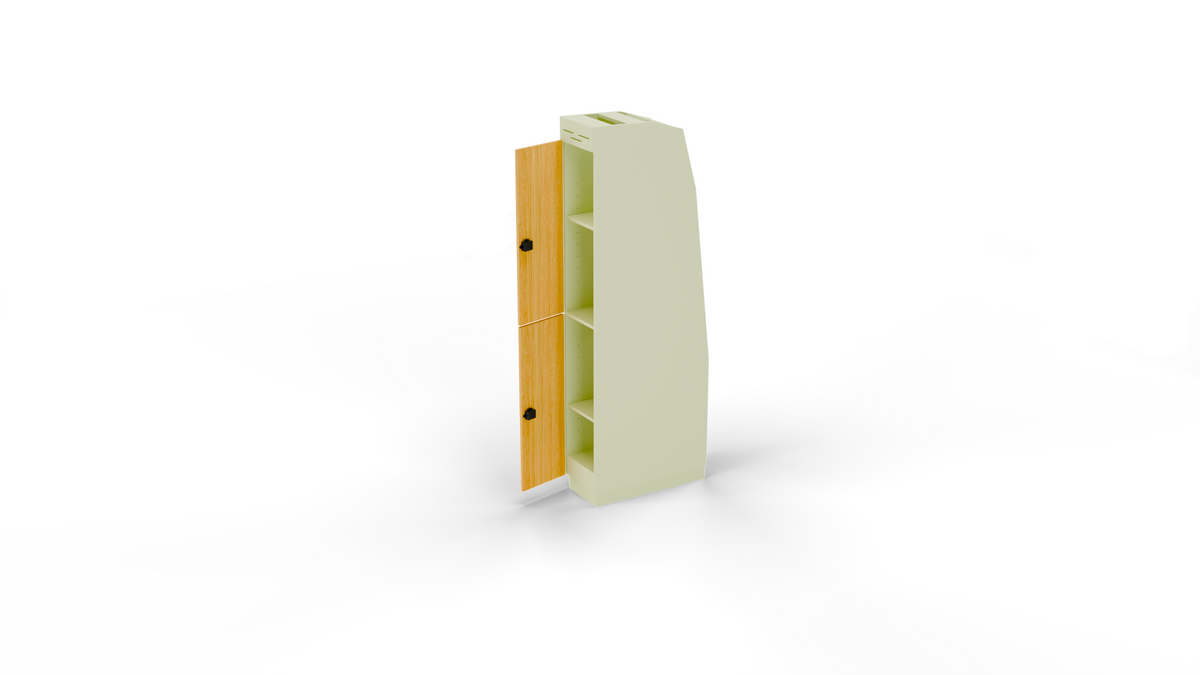

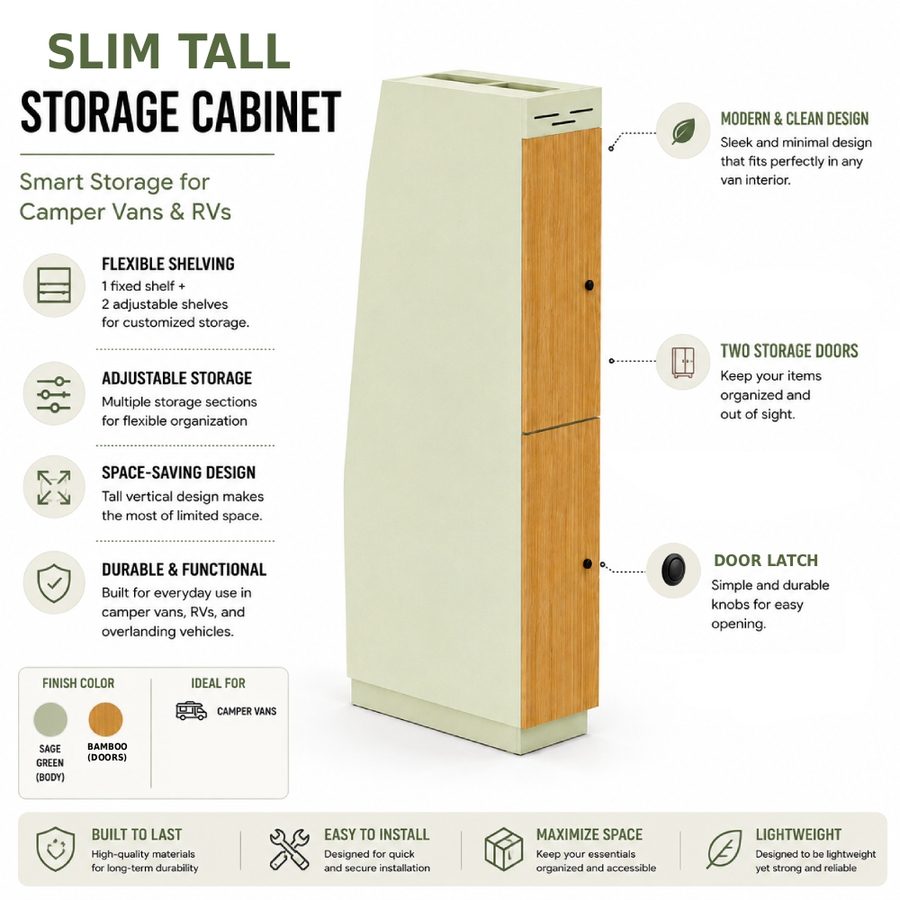

The Slim Tall Storage Cabinet puts a narrow interior position to work. Engineered around the Sprinter 170, it measures 11.5 inches across the front and 75 inches tall, creating vertical storage for pantry goods, clothing, towels, or daily gear.
A 0.59-inch ultralight plywood body has curved, tapered sides designed around the Sprinter wall profile. The Pastel Sage finish pairs with two stacked 0.59-inch natural bamboo doors for a warm, clean appearance.

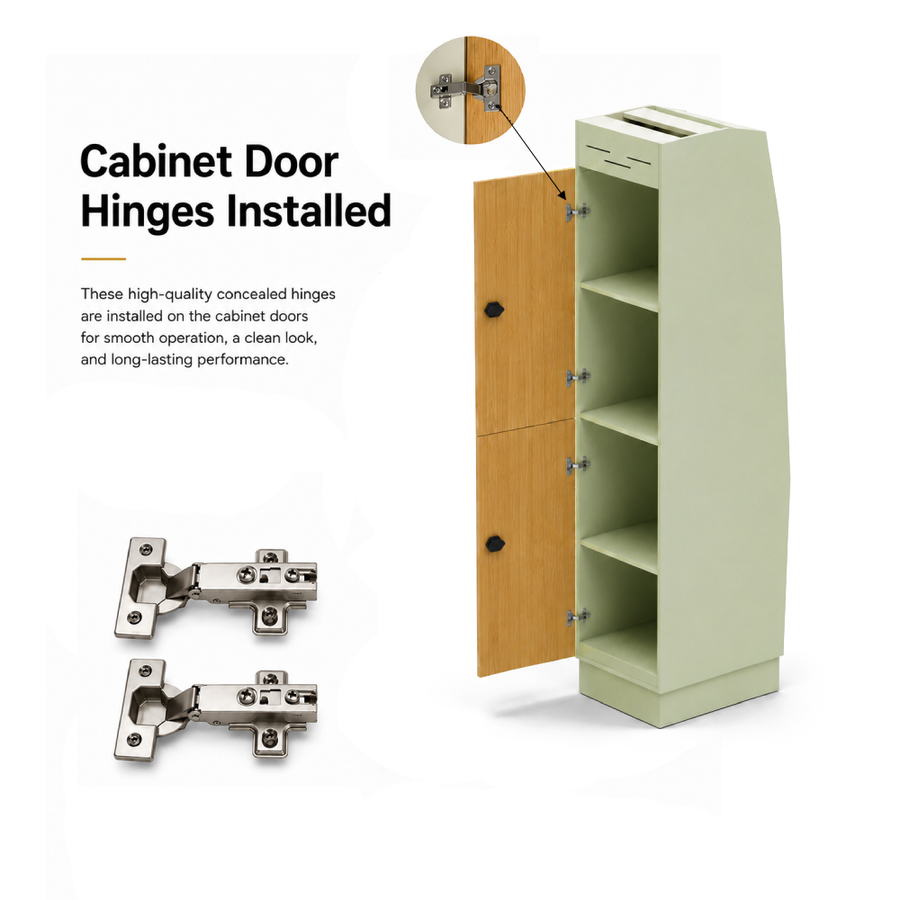

Inside, one fixed shelf and two adjustable shelves create up to four storage sections. Reposition the adjustable shelves as your needs change. Each door opens independently on full-overlay hinges with a touch-latch closure.
A two-slot upper ventilation panel supports passive airflow at the top. Internal connectors, dowels, structural screws, and steel brackets form the assembled construction, while concealed joinery keeps visible fasteners off the exterior.
The cabinet arrives fully assembled and ready to mount. Confirm its wall profile and dimensions against your finished interior, then position, level, and secure it to structural mounting points.
Main features
Designed around your day.
Thoughtful details, already built in.
02 / Adjustable shelving
Change the shelves, change the use
One fixed shelf and two adjustable shelves create up to four sections for pantry items, clothing, towels, or gear.
03 / Bamboo doors
Natural warmth, stacked neatly

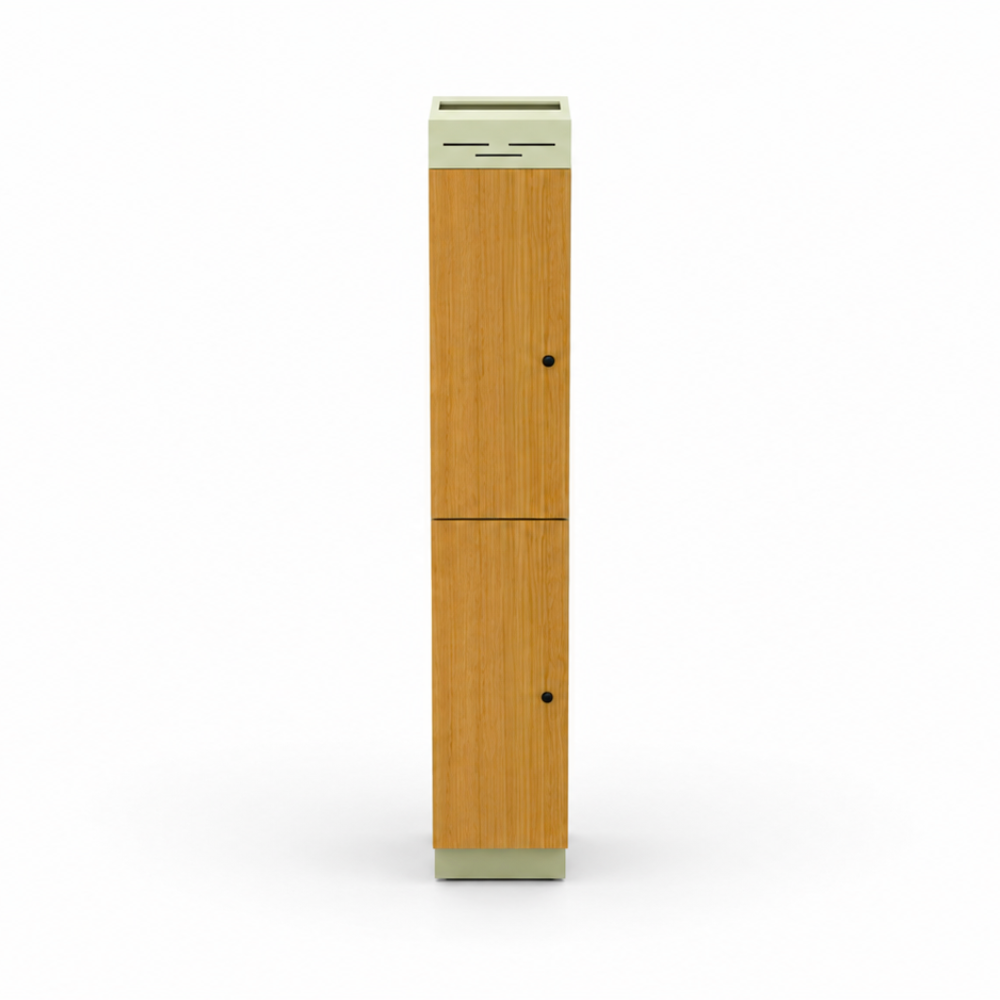

Two independent 0.59-inch bamboo doors pair with a Pastel Sage body and full-overlay hinges.
04 / Contoured body
Shaped around the Sprinter wall
The curved, tapered body follows the intended wall profile. Two upper slots support passive airflow.
ConstructionMaterials
- ✓Cabinet body: 0.59" ultralight plywood, curved and tapered
- ✓Body finish: Pastel Sage
- ✓Doors: two stacked 0.59" natural bamboo panels
- ✓Hinges: two full-overlay hinge sets
- ✓Closure: two push-to-open touch latches
- ✓Construction: housing-cam connectors, M6 inserts, dowels, structural screws, and steel L-brackets
A light body with a warm front
0.59-inch ultralight plywood forms the curved, tapered body, finished in Pastel Sage. Two 0.59-inch natural bamboo doors bring visible grain to the front.
Clean outside, assembled inside
Housing-cam connectors, threaded inserts, dowels, structural screws, and steel L-brackets form the internal construction. Concealed joinery keeps visible fasteners off the exterior.
Room to adapt
Reposition the two adjustable shelves as your storage needs change. The fixed shelf and independent doors keep the tall interior practical to use.
In the boxWhat's included
- ✓Fully assembled curved, tapered tall cabinet
- ✓Two stacked natural bamboo doors
- ✓One fixed shelf and two adjustable shelves
- ✓Two full-overlay hinge sets and two touch latches
- ✓Two-slot upper ventilation panel
- ✓Internal cam connectors, inserts, dowels, structural screws, and steel L-brackets
SpecificationsBuilt to these numbers
Vehicle compatibilityMercedes-Benz Sprinter 170
Dimensions75.0" H × 11.5" W × 26.7" D
Product weight110 lbs
PlacementFloor-standing vertical storage along the interior wall
Cabinet body0.59" ultralight plywood, curved and tapered
Body finishPastel Sage
DoorsTwo stacked 0.59" natural bamboo panels
InteriorOne fixed shelf and two adjustable shelves
Storage sectionsUp to four
HingesTwo full-overlay hinge sets
ClosureTwo push-to-open touch latches
VentilationTwo horizontal slots in the upper panel
ConstructionHousing-cam connectors, M6 inserts, dowels, structural screws, steel L-brackets
AssemblyFully assembled, ready to mount
FitmentCompatibility
Sprinter 17011.5" front width75" tall
Built for a dedicated vertical storage position along the interior wall. The contoured profile was developed around a specific Sprinter interior geometry.
Dimensions: 75.0" H × 11.5" W × 26.7" D. Confirm floor space, wall contour, ceiling clearance, and finished interior dimensions before ordering.
InstallationBefore you install
Medium difficulty2 peopleAbout 1 hour
Assembled. Ready to position.
Position and level the cabinet, check door clearance, and secure it to structural mounting points. Mounting hardware and drilling locations depend on your finished interior.
Tools to have ready
- Power drill & drill bits
- Rivet nut tool
- Screwdriver
- Measuring tape & level
