01 / Appliance and storage
One tower, two everyday uses

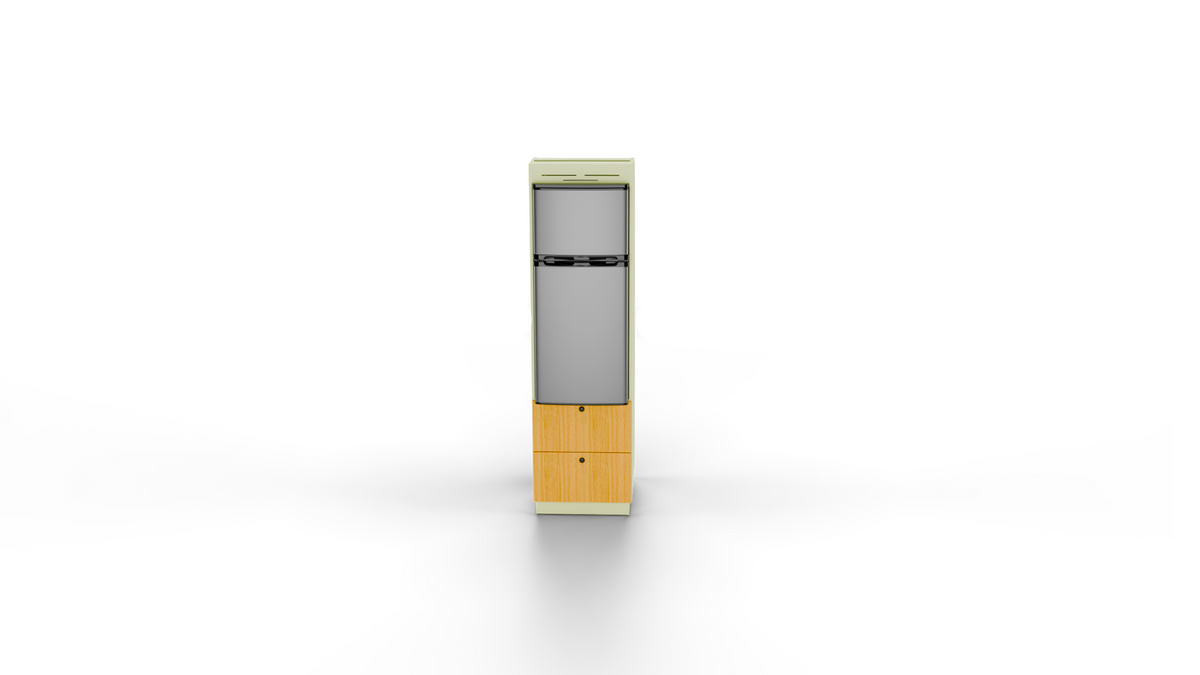

A refrigerator bay above two drawers combines appliance space and pantry storage in a 20.9-inch-wide footprint. Refrigerator not included.
Product detailsSmart Space-Saving Cabinet, Built to Fit Your Campervan Perfectly

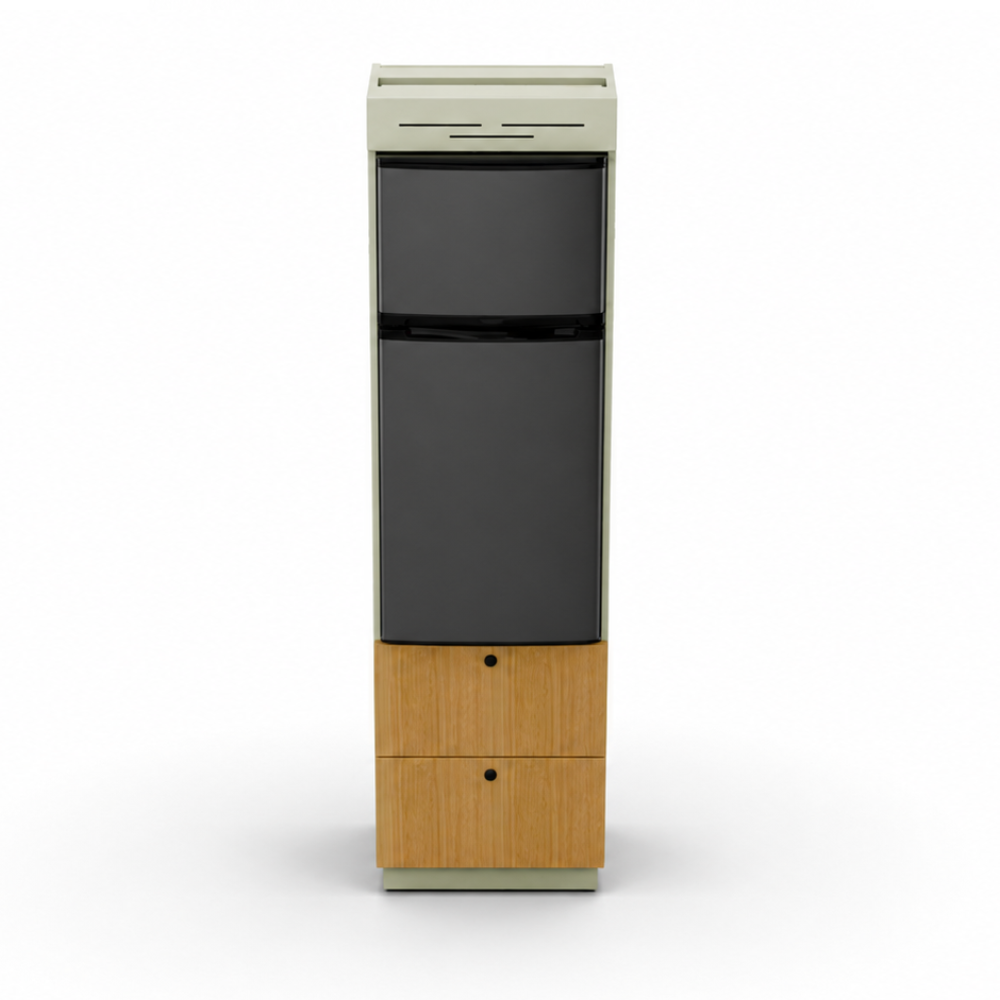

The Vankea Refrigerator Cabinet combines an upper refrigerator bay and two lower storage drawers in one 20.9-inch-wide footprint. Built around the Sprinter 170, its curved, tapered plywood body is finished in Pastel Sage and measures 75.0" H × 20.9" W × 26.9" D.
The fixed appliance platform supports a refrigerator bay above the drawer storage. Confirm the usable internal opening with Vankea and compare your chosen refrigerator’s dimensions, door travel, and ventilation requirements before ordering. Exterior cabinet measurements do not establish appliance fit. The refrigerator is not included.
Two drawers with 0.59-inch natural bamboo fronts organize cookware, pantry items, and daily gear below. Each uses a 16-inch undermount slide and its own round push-button travel lock. Close and secure both drawers before driving.
The cabinet arrives fully assembled and ready to mount, with concealed connectors and structural fastening points for a clean exterior. Position, level, and secure the tower to your van’s structure, then install the refrigerator separately according to its manufacturer’s requirements.
Main features
Designed around your day.
Thoughtful details, already built in.
02 / Two bamboo drawers

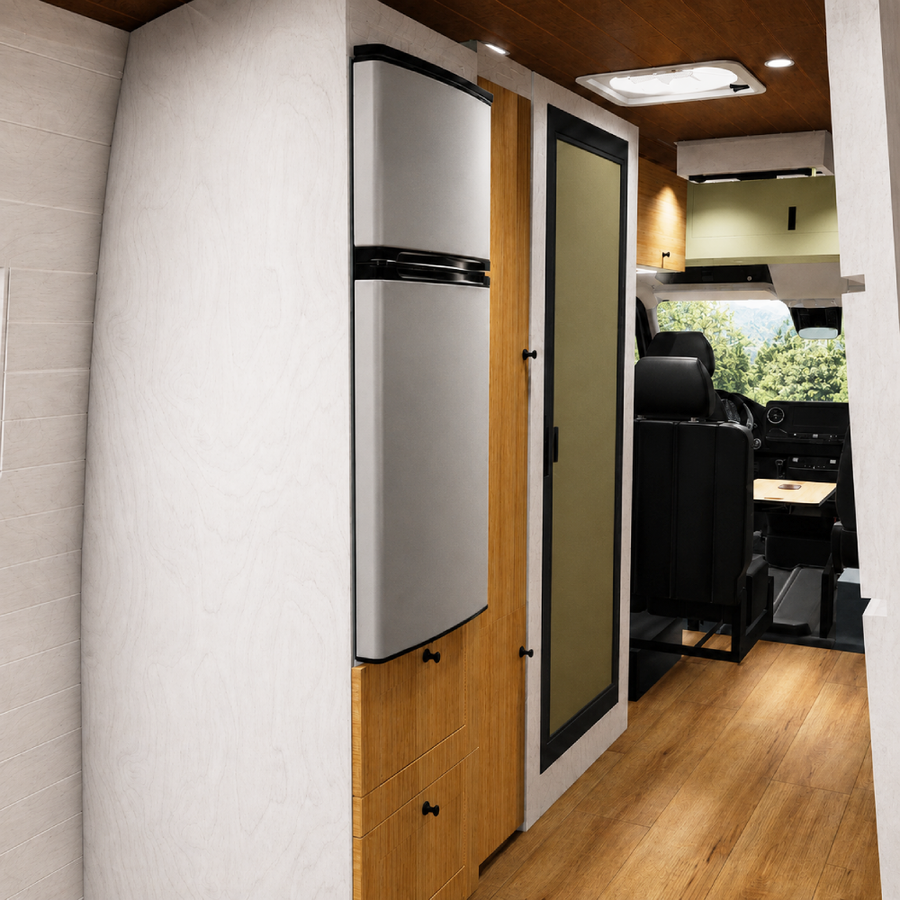

Keep daily gear close
Two independent drawers have 0.59-inch bamboo fronts, 16-inch undermount slides, and round push-button travel locks.
03 / Contoured body
Shaped for the Sprinter 170

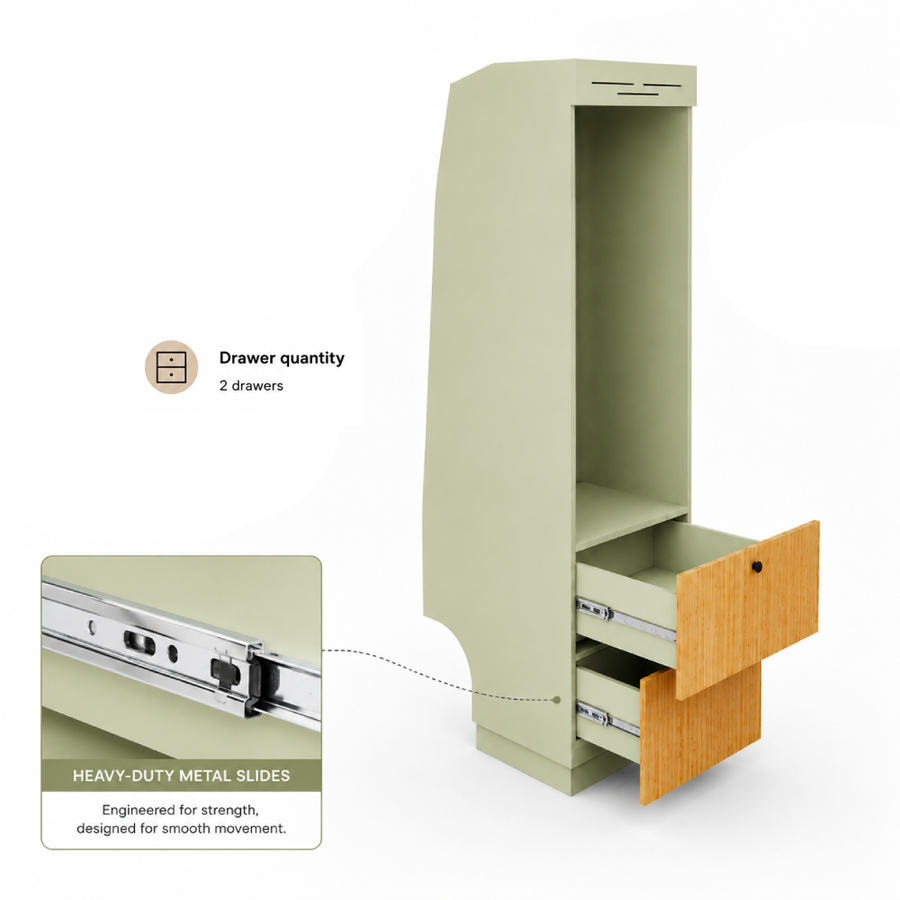

The curved, tapered plywood body follows the intended wall profile. Confirm fit against your finished interior.
04 / Fully assembled

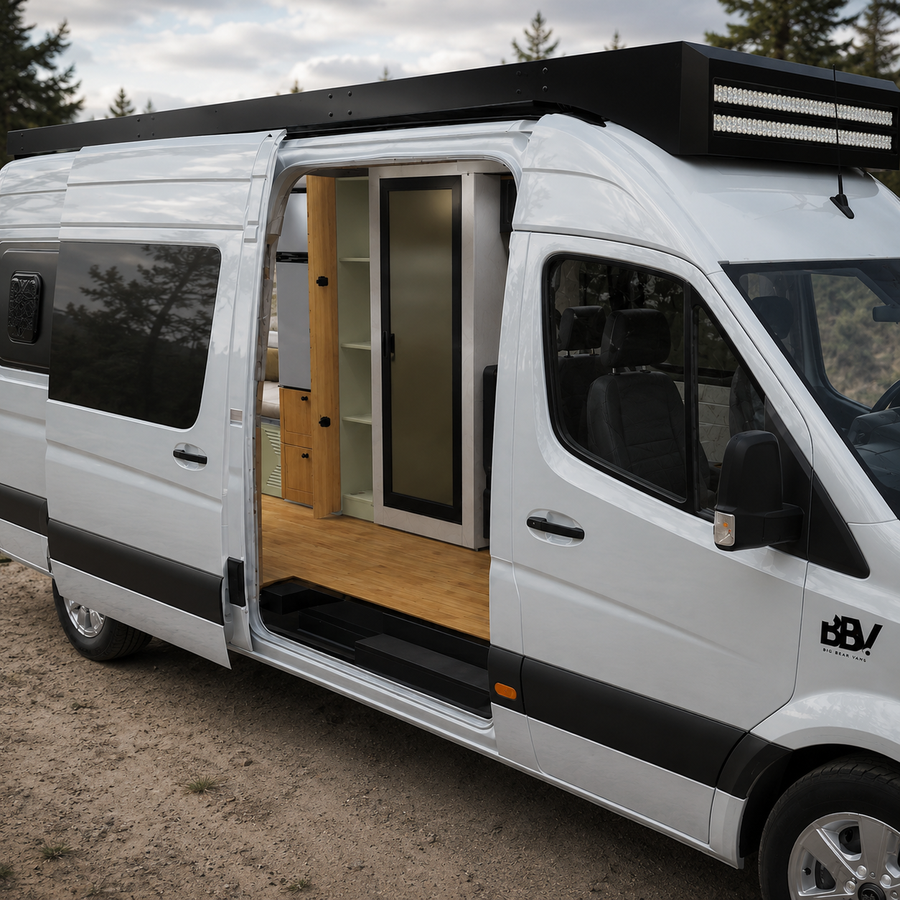

Position. Level. Mount.
The body and drawers arrive assembled. Secure the cabinet structurally, then install your refrigerator to its manufacturer’s requirements.
ConstructionMaterials
- ✓Cabinet body: 0.59" lightweight plywood, curved and tapered
- ✓Body finish: Pastel Sage
- ✓Drawer bodies: 0.59" Paulownia plywood
- ✓Drawer fronts: 0.59" natural bamboo
- ✓Slides: 16-inch undermount slides
- ✓Locks: round push-button travel lock on each drawer
- ✓Construction: housing-cam connectors, M6 PVC inserts, wooden dowels, and concealed structural screws
Pastel Sage, natural bamboo
A 0.59-inch lightweight plywood body pairs with two 0.59-inch natural bamboo drawer fronts. Curved side panels give the tower its contoured profile.
Built from the inside out
A fixed appliance platform and open upper and rear framework form the refrigerator section. Concealed cam connectors, inserts, dowels, and structural screws keep visible fasteners off the exterior.
Independent drawer access
Each drawer uses a 16-inch undermount slide and a round push-button travel lock. Separate cookware and pantry items, then secure both drawers before driving.
In the boxWhat's included
- ✓Fully assembled refrigerator tower with fixed appliance platform
- ✓Open upper refrigerator bay and rear structural framework
- ✓Two plywood drawers with natural bamboo fronts
- ✓16-inch undermount slides and individual push-button travel locks
- ✓Refrigerator not included; confirm usable bay dimensions before selecting an appliance
SpecificationsBuilt to these numbers
Vehicle compatibilityMercedes-Benz Sprinter 170
Overall dimensions75.0" H × 20.9" W × 26.9" D
Product weight110 lbs
PlacementFloor-standing refrigerator tower along the interior wall
Cabinet body0.59" lightweight plywood, curved and tapered
Body finishPastel Sage
Appliance supportFixed platform with open upper and rear framework
Refrigerator openingConfirm usable internal dimensions with Vankea
DrawersTwo 0.59" Paulownia plywood drawer bodies
Drawer fronts0.59" natural bamboo
Drawer slides16-inch undermount
LocksRound push-button travel lock on each drawer
ConstructionHousing-cam connectors, M6 PVC inserts, dowels, concealed structural screws
AssemblyFully assembled, ready to mount
RefrigeratorNot included
FitmentCompatibility
Sprinter 17020.9" overall width75" tall
Designed for a fixed vertical position along the interior wall. Confirm the curved profile against your finished wall and floor.
Overall dimensions: 75.0" H × 20.9" W × 26.9" D. These are exterior measurements, not the refrigerator opening. Contact us for usable bay dimensions and confirm appliance clearances before ordering.
InstallationBefore you install
Fully assembled2 people
Position, level, and secure
Dry-fit the tower against the finished wall, level it, and secure it to structural mounting points. Exact hardware and drilling locations depend on your interior.
Install and wire the refrigerator separately, following its manufacturer’s mounting, power, door-clearance, and ventilation requirements.
